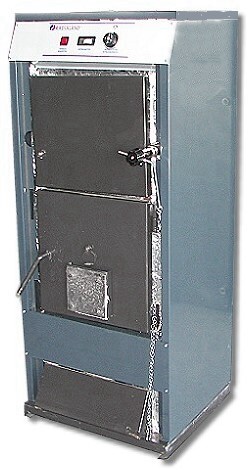

The ASK
RADIALAND is a mainly solid fuels boiler, with the
possibility, however, of excellent operation and high degree output
in the compustion of liquid and gas fuels too. It
is manufactured by exellent quality steel stal 37.2 and from tubes
without seam, stal 35.8, based on german specifications DIN
4702. It
has a big feeding door and big combustor in order to supplied in
sparcse time intervals with solid fuels. The
grate in the combustor is manufactured from resistand cast-iron and
it has the possibility to keep the fuel until the complete
compustion. In
the lower part of the boiler thers is an ash container, designed to
easily remove the ash. It
is accompanied with a mechanic thermostat, so that the boiler has a
steady temperature. It
has a complete insulation from glass-wool 5CM thick and covers
panited with electrostatic coating. TECHNICAL
CHARACTERISTICS
|
TYPE OF BOILER |
POWER
TO
WOOD |
POWER
TO LIQUID |
EVACU- ATION |
VENTI-
LATOR |
WIDTH |
HEIGHT |
LENGTH |
| KW |
KW |
inch |
mm |
cm |
cm |
cm |
| ASK
40-60 |
46,5 |
69,8 |
1¼" |
180 |
52 |
120 |
60 |
| ASK
60-80 |
69,8 |
93,0 |
1½" |
180 |
60 |
125 |
65 |
| ASK
80-100 |
93,0 |
116,3 |
1½" |
200 |
72 |
160 |
80 |
| ASK
100-120 |
116,3 |
139,5 |
2" |
200 |
72 |
180 |
80 |
| ASK
120-150 |
139,5 |
174,4 |
2" |
220 |
80 |
160 |
90 |
| ASK
160-200 |
186,0 |
232,6 |
2½' |
250 |
80 |
180 |
90 |
| ASK
200-250 |
232,6 |
290,7 |
2½' |
250 |
105 |
200 |
110 |
| ASK
250-300 |
290,7 |
348,8 |
3" |
250 |
105 |
220 |
110 |
| ASK
300-370 |
348,8 |
430,2 |
3" |
300 |
115 |
240 |
115 |
| ASK
350-430 |
407,0 |
500,0 |
4" |
300 |
115 |
270 |
115 |
|
