SOLAR
SYSTEMS
Solar Systems

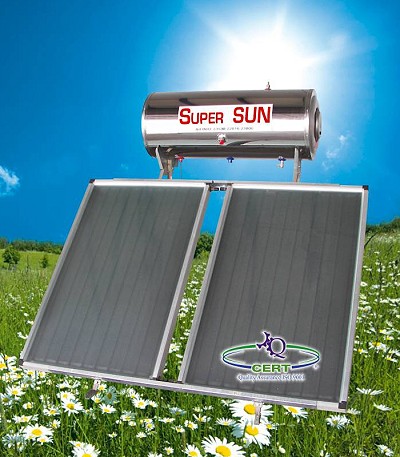

SUPER
SUN Exelent
Quality High
output Unlimited
life time Total
utilization of solar power Inexpensive
production of abundant warm water TECHNICAL
CHARACTERISTICS FOR SOLAR SYSTEMS
|
ΤΥΠΟΣ |
ΣΥΛΛΕΚΤΙΚΗ
ΕΠΙΦΑΝΕΙΑ |
ΧΩΡ/ΤΗΤΑ |
ΘΕΡΜΙΚΟΣ
ΦΟΡΕΑΣ ΑΝΤΙΨΥΚΤΙΚΟ |
 |
| Lit. |
| SL
130 |
1
x 2 m² |
130 |
2
lit. |
| SL
160 |
2
x 1,5 m² |
160 |
3
lit. |
| SL
200 |
2
x 2 m² |
200 |
4
lit. |
| SL
250 |
3
x 2 m² |
250 |
4
lit. |
| SL
300 |
3
x 2 m² |
300 |
6
lit. |
STAINLESS
STEEL SOLAR ENERGY BOILERS Exterior
wrapping from stainless antimagnetic steel, type AISI 304 Β.Α.
- thickness 0,6 mm Insulation
by caster polyurethane 60mm thick and 40 Kg/m² denisty. Internal
container (boiler) by european chalybldoelasma type
UST 37,2, thick 3 mm, tested in 18 At pressure. Internal
coating of hot enamel
DIN 4753 Teil 3. 4000W
electric resistance with regulated safety-thermostat for easy change
from solar to electric. Ascending
protection from magnesium bar that gives bigger life time the boiler
and can be changed easily. Special
flange by chomium 5mm thick. On the top are placed the electric
resistance and the magnesium bar. The
regional cloak on the heating alternation in the closed cirquit is
from chalybdoelasma 2mm thick for the system's best frost protection,
the deterioration and oxidations Safety
valve and onlendig valve for more safety in the solar system Closed
circuit safety
And more: The boiler is changing easily in triple energy in
order to functions also with radiators
TECHNICAL
CHARACTERISTICS FOR SOLAR BOILER
|
TYPE |
 |
| BOILER
120 L DOUBLE ENERGY |
| BOILER
150 L DOUBLE ENERGY |
| BOILER
200 L DOUBLE ENERGY |
| BOILER
120 L TRIPLE ENERGY |
| BOILER
150 L TRIPLE ENERGY |
| BOILER
200 L TRIPLE ENERGY |
SOLAR ENERFY
COLLECTORS
The frame and the back of
collector is without seams, from a leaf 0,6mm thick that isn't
affected by the weather and holds steady the thermic element and the
crystal.
A small conciseness in
pyrite crystal with thickness 3mm fror big absorbency.
The crystal is
surrounding with silicone for perfect leak-tightness and appliance
and also for the system'ss protection, during the construction and
dilation.
Collective surface
from copper profile with special painting process for the best
absoebency.
Cupreous hydropipes
defused to the aluminium profile.
Heat insulation by
glass-wool with 5cm thick.
TECHNICAL
CHARACTERISTICS FOR SOLAL ENERGY COLLECTORS
|
TYPE |
COLLECTIVE
SURFACE |
MATERIALS |
 |
| COPPER
AND ALUMINIUM WITH UNBREAKABLE CRYSTA |
| SL
130 |
1
x 2 m² |
FOR
BOILER 130 lit |
| SL
160 |
1
x 1,5 m² |
FOR
BOILER 160 lit |
| SL
200 |
1
x 2 m² |
FOR
BOILER 20 lit |
ELECTRIC
BOILERS
TECHNICAL
CHARACTERISTICS FOR ELECTRIC BOILERS
|
TYPE |
INSULATION |
ANTICORROSION
PRORECTION |
 |
| 5L |
GLASS-WOOL |
SUPER
GLASS |
| 10L |
GLASS-WOOL |
SUPER
GLASS |
| 40L |
POLYURETHANE |
SUPER
GLASS |
| 60L |
POLYURETHANE |
SUPER
GLASS |
| 80L |
POLYURETHANE |
SUPER
GLASS |
| 100L |
POLYURETHANE |
SUPER
GLASS |
| 120L |
POLYURETHANE |
SUPER
GLASS |
DOUBLE
ENERGY BOILERS TECHNICAL
CHARACTERISTICS FOR DOUBLE ENERGY BOILERS
|
TYPE |
INSULATION |
ANTICORROSION
PRORECTION |
 |
| 60L |
POLYURETHANE |
SUPER
GLASS |
| 80L |
POLYURETHANE |
SUPER
GLASS |
| 100L |
POLYURETHANE |
SUPER
GLASS |
| 120L |
POLYURETHANE |
SUPER
GLASS |
BOILERS
HORIZONTIAL AND VERTICAL FOR BOILER ROOMS
TECHNICAL
CHARACTERISTICS FOR BOILERS HORIZONTIAL AND VERTICAL FOR BOILER ROOMS
|
TYPE |
INSULATION |
 |
| 120L |
DOUBLE
ENERGY |
| 150L |
DOUBLE
ENERGY |
| 200L |
DOUBLE
ENERGY |
| 300L |
DOUBLE
ENERGY |
| 120L |
TRIPLE
ENERGY |
| 150L |
TRIPLE
ENERGY |
| 200L |
TRIPLE
ENERGY |
| 300L |
TRIPLE
ENERGY |
|
KOSTOPOULOS
S.A. - RADIALAND
