After the success of the classical steel individual units,

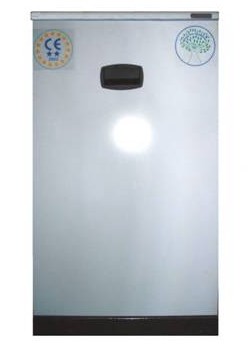

KOSTOPOULOS SA proceeds in planning and creating the new steel individual unit type
RADIALAND TS and KTS, which have all the advantages of classical units
PLUS the production of abundant hot water without using a BOILER but with the modern
AIC HEAT EXCHANGER that successfully has been adapted in her body.
It is manifactured by the most excellent quality steel, with the strictiest german specifications
DIN 4702.
The careful manufacture gives guarantee for quiet operation and excellent appearance, big output with very small consumption of fuels and the most excellent appearance.

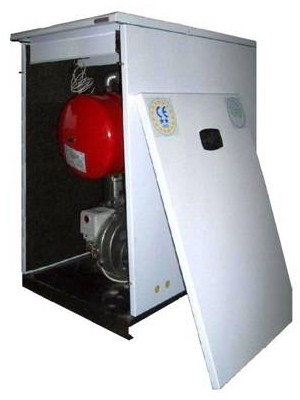

The exterior covers are coated with electrostatic oven coating and have glass-wool lining with aluminum for perfect
heat-insulation.

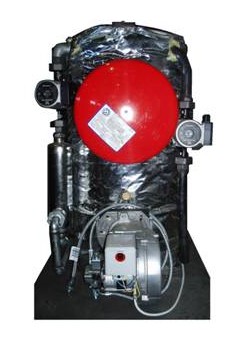

It is constituted from:
1) AIC heat exchanger for hot water production.
 The AIC heat exchangers are fabricated with the distinctive AIC helically corrugated tube design. Intended for use with high fluid flows and low temperature variances.
Their complete stainless steel welded structure ensures product strength and high quality performance.
Their biggest advantage is the hot water quick-production only with the opening of tap and as well as their easy cleaning.
2) Steel boiler type S with tubes or KS with cast iron plates for fast and economic
heating.
3) Burner which operates quietly and has pressing combustion with European
specifications.
4) Two circulators of three speeds, hydro liquid and quiet (one for the production of hot water and one for the central heating).
5) Expansion tank 12 lt.

The RADIALAND COMPACT command board which is found in on the top of individual unit, includes the following
bodies:
 1) General switch with indicative lamp.
2) Thermometer.
3) Boiler thermostat, for temperature regulation of installation water.
4) Circulator thermostat.
5) Safety thermostat which is regulated to interrupt the operation of the boiler on 90°C in case of
overheat.
TECHNICAL
CHARACTERISTICS
| Type
of Unit |
|
20 |
30 |
40 |
| Power |
Kcal/h |
20.000 |
30.000 |
40.000 |
| Width
TS & KTS |
mm |
520 |
590 |
590 |
| Heigh
TS & KTS |
mm |
870 |
980 |
980 |
| Depth
TS & KTS |
mm |
850 |
850 |
850 |
| Width
S & KS |
mm |
520 |
590 |
590 |
| Heigh
S & KS |
mm |
870 |
980 |
980 |
| Depth
S & KS |
mm |
850 |
850 |
850 |
| Capacity
of water |
lit |
20 |
25 |
32 |
| Container
of Dilation (expansion tank) |
lit |
12 |
12 |
18 |
| Flow |
inch |
1" |
1" |
1¼" |
| Diameter
of chimnery S |
mm |
115 |
115 |
115 |
| Diameter
of chimnery ÊS |
mm |
100 |
120 |
130 |
| Weight
(void) |
kg |
120 |
140 |
170 |
| Power
of boiler |
W |
80 |
80 |
100 |
| Power
of circulator |
W |
80 |
80 |
100 |
| Pressure
of operation |
bar |
3 |
3 |
3 |
| Tendency
of operation |
V |
220 |
220 |
220 |
| Pressure
of trial |
bar |
10 |
10 |
10 |
| Temperature
of water(max) |
°C |
95 |
95 |
95 |
| Temperature
of return of water (min) |
°C |
65 |
65 |
65 |
|
