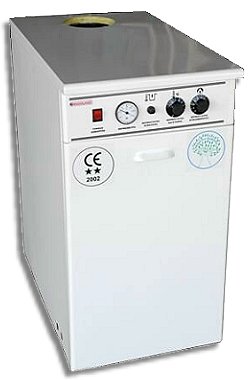

The RADIALAND
individual unit is a complete room boiler, that can heat perfectly
any space and offer abundant hot water (Unit TS)
It is manifactured by most excellent quality steel, with the
strictiest german specifications DIN
4702.
The careful manufacture gives guarantee for quiet operation and
excellent appearance.
The exterior covers are coated with electrostatic oven coating and
have glass-wool lining with aluminum for perfect heat-insulation. It
is consituted from:
1) Four hauls steel boiler, for fast and economic heating.
2) Burner which operates quietly and has pressing combustion with
european specifications.
3) Four speed circulator, hydroliquit and quiet.
4) Expansion mat 12 lt. The RADIALAND COMPACT
command board includes the following bodies:
1) General switch with indicative lamp.
2) Thermometer.
3) Boiler thermostat, for temperature regulation of installation water.
4) Circulator thermostat.
5) Safety thermostat which is regulated to interrupt the operation
of the boiler on 90°C in case of overheat.
TECHNICAL
CHARACTERISTICS
| Type
of Unit |
|
20 |
30 |
40 |
| Power |
Kcal/h |
20.000 |
30.000 |
40.000 |
| Width |
mm |
450 |
520 |
520 |
| Heigh |
mm |
870 |
980 |
980 |
| Depth |
mm |
720 |
850 |
850 |
| Capacity
of water |
lit |
20 |
25 |
32 |
| Container
of Dilation (expansion tank) |
lit |
12 |
12 |
18 |
| Flow |
inch |
1" |
1" |
1¼" |
| Diameter
of chimnery |
mm |
120 |
115 |
115 |
| Weight
(void) |
kg |
120 |
140 |
170 |
| Power
of boiler |
W |
80 |
80 |
100 |
| Power
of circulator |
W |
80 |
80 |
100 |
| Pressure
of operation |
bar |
3 |
3 |
3 |
| Tendency
of operation |
V |
220 |
220 |
220 |
| Pressure
of trial |
bar |
10 |
10 |
10 |
| Temperature
of water(max) |
°C |
95 |
95 |
95 |
| Temperature
of return of water (min) |
°C |
65 |
65 |
65 |
|
